development of a zinc porphyrin sensitizer reaping a η over
12%.4 However, thiswas achieved bythe cosensitization of
the zinc porphyrin sensitizer and a triphenylamine sen-
sitizer as well as the judicious usage of a Co(II/III) tris-
(bipyridyl)-based redox electrolyte. In parallel, there
has been keen interest in developing donorÀπ-bridgeÀ
acceptor (DÀπÀA)-type metal-free organic sensitizers.
Among the various organic donors, e.g., triphenylamine,5
coumarin,6 and indoline,7 that have been explored in
DSCs, triphenylamine has yielded η of ∼10%.5c Squaraine
dyes have also been designed to enhance the light-harvesting
property in the near-IR region.8 Succeeding developments
of such metal-free organic sensitizers need to address sig-
nificant issues such as further η boost, cost reduction, and
synthesis simplicity.
hasdemonstrateda performanceof themetalÀfreeorganic
DTF-C sensitizers comparable to that of Ru-based dye
N719 typically used in DSCs as a point of reference.
Tetrathiafulvene (TTF) is a well-known electron-donating
group, and the preparation of its derivatives has primarily
been motivated for applications as optoelectronic materials.9
Figure 1. Molecular structures of DTF-C1, DTF-C2, and
DTF-C3.
€
Recently, Gratzel et al. investigated the use of exTTF (with
extended π-conjugation) sensitizers in DSCs and obtained a
moderate η.10 By comparison, dithiafulvene (DTF)11 can be
regarded as a smaller version of the fulvene family charac-
terized by a terminal electron-donating group, which could
permit more concise synthesis, compact dye adsorption, and
effective charge separation.
To our knowledge, however, the potential of the dithia-
fulvenyl group as a donor for DSCs has not been explored.
Here, we report the facile synthesis and DSC performance
of a series of organic DÀπÀA-type sensitizers based on the
dithiafulvene derivative donor and a cyanoacrylic acid
acceptor with different bridge lengths. This initial work
Illustrated in Figure 1 are chemical structures of the
three DÀπÀA-type sensitizers we have synthesized, which
are designated as DTF-C1, DTF-C2, and DTF-C3 in the
order of increasing π-bridge length. To prevent aggre-
gation of these sensitizers as well as to retard charge
recombination,7b two n-hexyl groups were symmetrically
attached on the dithiafulvenyl donor unit. The synthesis
of the sensitizers involved two major steps (Scheme S1,
Supporting Information): (1) HornerÀWittig condensa-
tion of 4,5-bis(hexylthio)-1,3-dithiole-2-thione (HDT) as

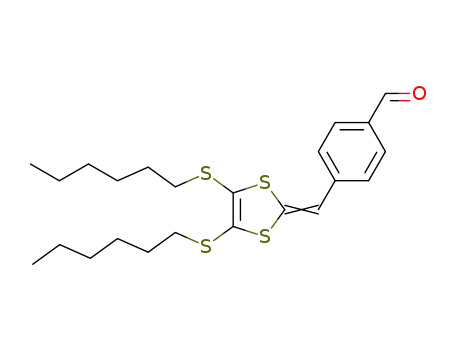

the donor moiety and aromatic dialdehydes A1ÀA3 pro-
duced the key intermediate π-extended DTF-bearing alde-
hydes B1ÀB3; (2) Knoevenagel reaction of the resulting
aldehydes and cyanoacetic acid in the presence of piper-
idine afforded the target sensitizer compounds DTF-C. As
the starting reagents for the condensation in Scheme S1
(Supporting Information), HDT was prepared by the
reaction of [Et4N]2[Zn(DMIT)2] with 1-bromohexane fol-
lowing a protocol from the literature (Scheme S2, Support-
ing Information),12 and the aromatic dialdehydes were
obtained commercially or by Suzuki couplings (Scheme
S3, Supporting Information).
Figure 2 shows absorption spectra of the DTF-C sensi-
tizers, and the corresponding spectroscopic parameters
extracted are summarized in Table S1 (Supporting Infor-
mation). All three of the sensitizers have a relatively strong
absorption in the 400À500 nm region attributable to the
πÀπ* charge transfer transition in π-extended DTF
chromophores. The absorption maximum (λmax) was
observed at 428 nm (molar extinction coefficient ε =
1.87 Â 104 MÀ1 cmÀ1) for DTF-C1 and 406 nm (ε = 2.75 Â
104 MÀ1 cmÀ1) for DTF-C2. While the trend of extinction
coefficient is plausible, such a blue-shift as a result of the
lengthening the π-bridge is counter to our expectation.
From Table S1 (Supporting Information), we find that
the Stokes shift of DTF-C2 is much larger than that of
DTF-C1 (7908 cmÀ1 vs 6270 cmÀ1). This indicates a larger
(4) Yella, A.; Lee, H.-W.; Tsao, H. N.; Yi, C.; Chandiran, A. K.;
Nazeeruddin, M. K.; Diau, E. W.-G.; Yeh, C.-Y.; Zakeeruddin, S. M.;
€
Gratzel, M. Science 2011, 334, 629.
(5) (a) Hwang, S.; Lee, J. H.; Park, C.; Lee, H.; Kim, C.; Park, C.;
Lee, M. H.; Park, J.; Kim, K.; Park, N. G.; Kim, C. Chem. Commun.
2007, 4887. (b) Zhang, G.; Bala, H.; Cheng, Y.; Shi, D.; Lv, X.; Yu, Q.;
Wang, P. Chem. Commun. 2009, 2198. (c) Zeng, W. D.; Cao, Y.; Bai, Y.;
Wang, Y. H.; Shi, Y. S.; Zhang, M.; Wang, F. F.; Pan, C. Y.; Wang, P.
Chem. Mater. 2010, 22, 1915. (d) Satoh, N.; Nakashima, T.; Yamamoto,
K. J. Am. Chem. Soc. 2005, 127, 13030. (e) Chen, D. Y.; Hsu, Y.-Y.; Hsu,
H.-C.; Chen, B.-S.; Lee, Y.-T.; Fu, H. S.; Chung, M.-W.; Liu, S.-H.; Chi,
Y.; Chou, P.-T. Chem. Commun. 2010, 5256.
(6) (a) Hara, K.; Kurashige, M.; Dan-oh, Y.; Kasada, C.; Shinpo, A.;
Suga, S.; Sayama, K.; Arakawa, H. New J. Chem. 2003, 27, 783. (b)
Wang, Z. S.; Cui, Y.; Dan-oh, Y.; Kasada, C.; Shinpo, A.; Hara, K.
J. Phys. Chem. C 2007, 111, 7224. (c) Wang, Z. S.; Cui, Y.; Hara, K.;
Dan-oh, Y.; Kasada, C.; Shinpo, A. Adv. Mater. 2007, 19, 1138.
(7) (a) Horiuchi, T.; Miura, H.; Uchida, S. Chem. Commun. 2003,
3036. (b) Koumura, N.; Wang, Z. S.; Mori, S.; Miyashita, M.; Suzuki,
E.; Hara, K. J. Am. Chem. Soc. 2006, 128, 14256.
(8) Yum, JÀH.; Walter, P.; Huber, S.; Rentsch, D.; Geiger, T.;
€
€
Nuesch, F.; Angelis, F D.; Gratzel, M.; Nazeeruddin, M K. J. Am.
Chem. Soc. 2007, 129, 10320.
ꢁ
(9) (a) Gorgues, A.; Hudhomme, P.; Salle, M. Chem. Rev. 2004, 104,
5151. (b) Segura, J. L.; Martın, N. Angew. Chem., Int. Ed. 2001, 40, 1372.
(10) Wenger, S.; Bouit, P.-A.; Chen, Q. L.; Teuscher, J.; Censo,
D. D.; Humphry-Baker, R.; Moser, J.-E.; Delgado, J. L.; Martın, N.;
´
´
€
Zakeeruddin, S. M.; Gratzel, M. J. Am. Chem. Soc. 2010, 132, 5164.
(11) For examples of dithiafulvene compounds as NLO materials, see:
(a) Blanchard-Desce, M.; Ledoux, I.; Lehn, J. M.; Malthete, J.; Zyss, J. J.
Chem.Soc., Chem. Commun. 1998, 737. (b) Meyers, F.; Bredas, J. L.; Zyss, J.
ꢁ
J. Am. Chem. Soc. 1992, 114, 2914. (c) De Lucas, A. I.; Martin, N.; SRnchez,
ꢁ
ꢁ
L.; Seoane, C.; Garιn, J.; Orduna, J.; AlcalR, R.; Villacampa, B. Tetra-
hedron Lett. 1997, 38, 6107. (d) Batsanov, A. S.; Bryce, M. R.; Coffin,
´
M. A.; Green, A.; Hester, R. E.; Howard, J. A. K.; Lednev, I. K.; Martın,
ꢁ
ꢁ
ꢁ
N.; Moore, A. J.; Moore, J. N.; Ortι, E.; SRnchez, L.; Savirοn, M.; Viruela,
(12) Feri, M.; Diederich, F.; Tremont, R.; Rodriguez, T.; Echegoyen,
L. Helv. Chim. Avta. 2006, 89, 2040.
P. M.; Viruela, R.; Ye, T. Chem.;Eur. J. 1998, 4, 2580.
Org. Lett., Vol. 14, No. 9, 2012
2215
